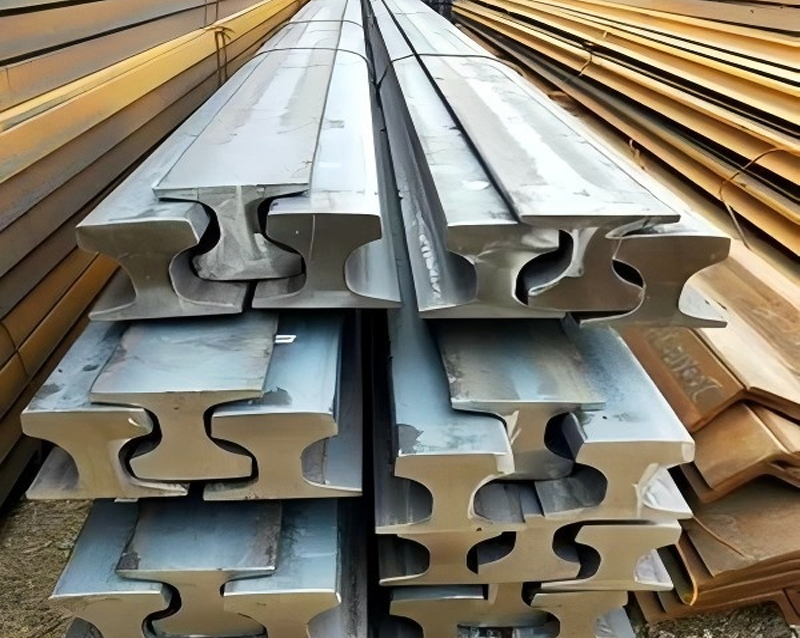

Crane rails

Crane Rails are precision-engineered crane parts that form the essential running track for overhead cranes and gantry cranes. They serve as the foundational guideway upon which the crane's end trucks or trolley wheels travel, ensuring smooth, stable, and aligned movement of the entire lifting system across the workspace.

The quality and performance of crane rails directly determine the operational safety, precision, load stability, and long-term durability of your material handling system. At Henan Mine Crane, we manufacture high-performance crane rails designed to meet the most demanding industrial applications.

Henan Mine can offer the following rails

Crane rails Features

• We also provide other rail types like JIS standard, UIC standard, based on client needs.

• Steel grades are produced to various qualities and specifications as our clients require.

• Henan Mine technical support can ensure that every rail we deliver provides optimal performance throughout its service life.

• Standard rail lengths are furnished from 6 to 24 meters. Other lengths are available upon request.

• Length customization is available to facilitate container loading.

• 45 degree cutting for the both ends is available.

• Drilling holes at both ends is available as an optional service.

• We also supply rail processing, like welding, milling, special profile processing, etc.

• Our engineers assist customers in designing and building crane movement line according to specific requirements.

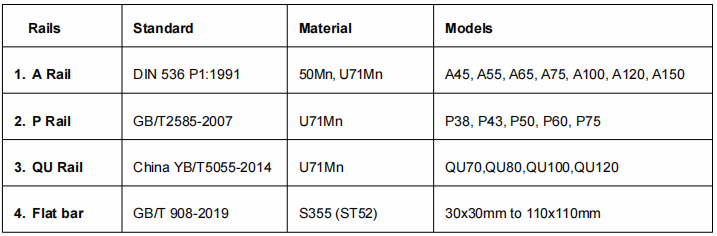

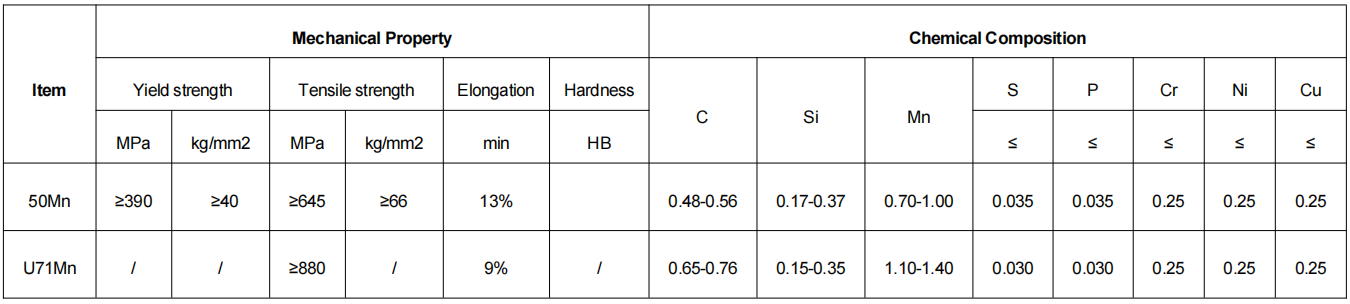

Crane Rails Material details

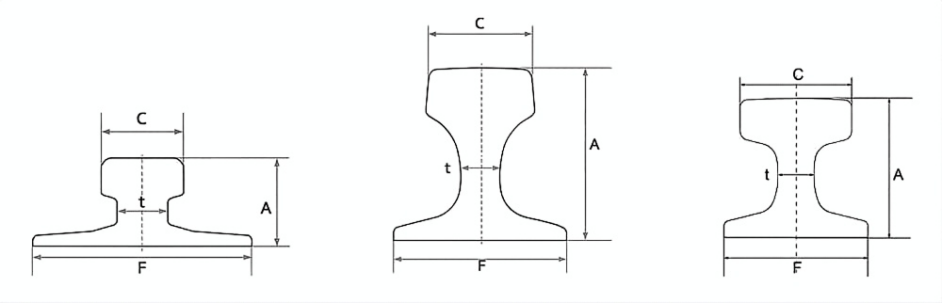

Crane Rails Parameter Data

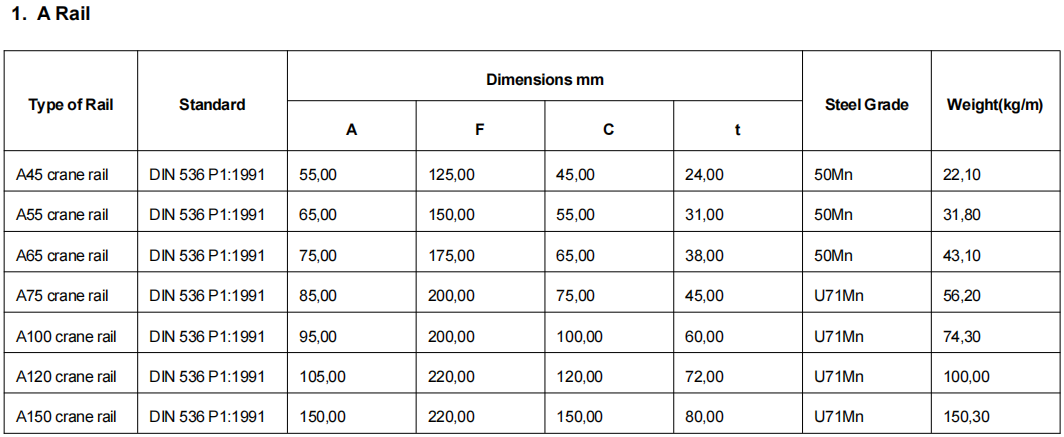

1.A Rail

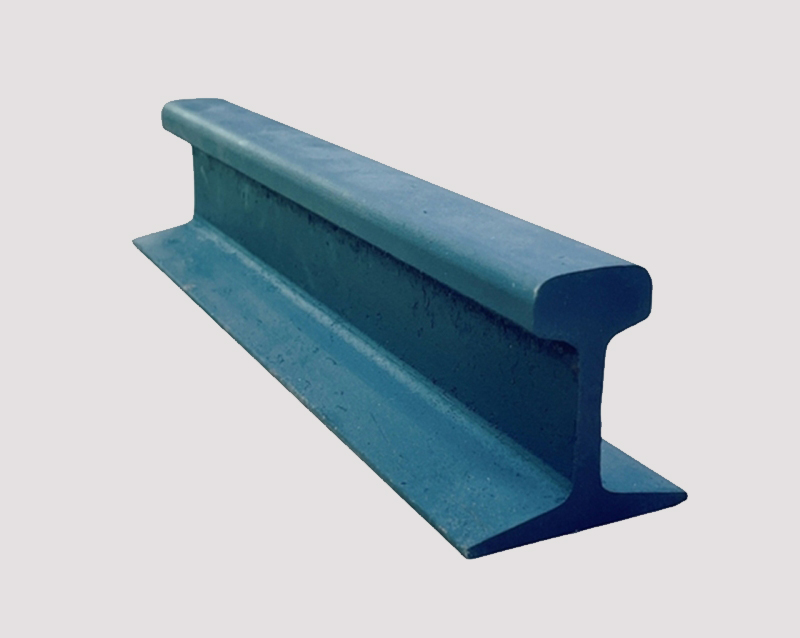

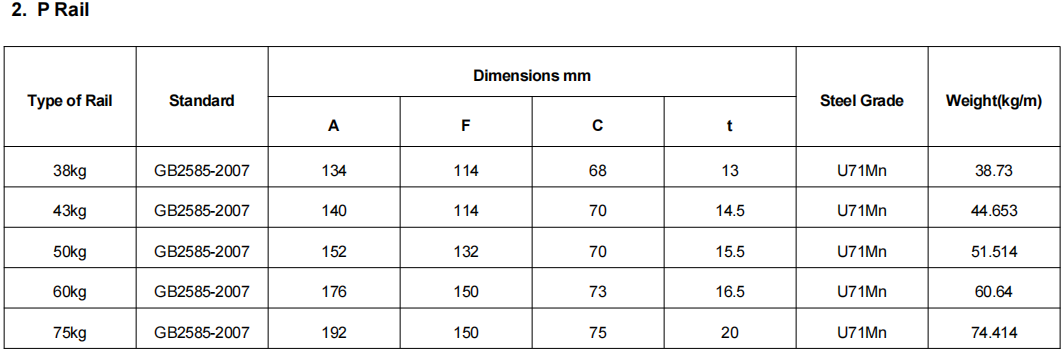

2.P Rail

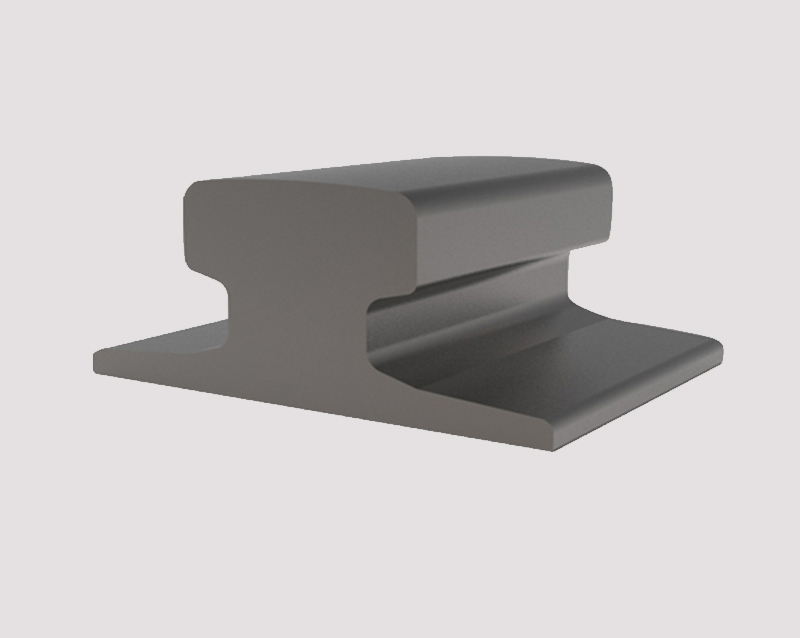

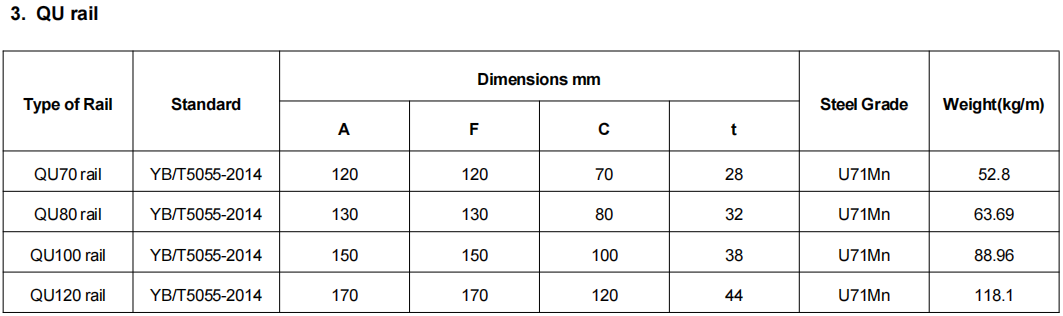

3.QU rail

4.Square Bar And Flat Bar

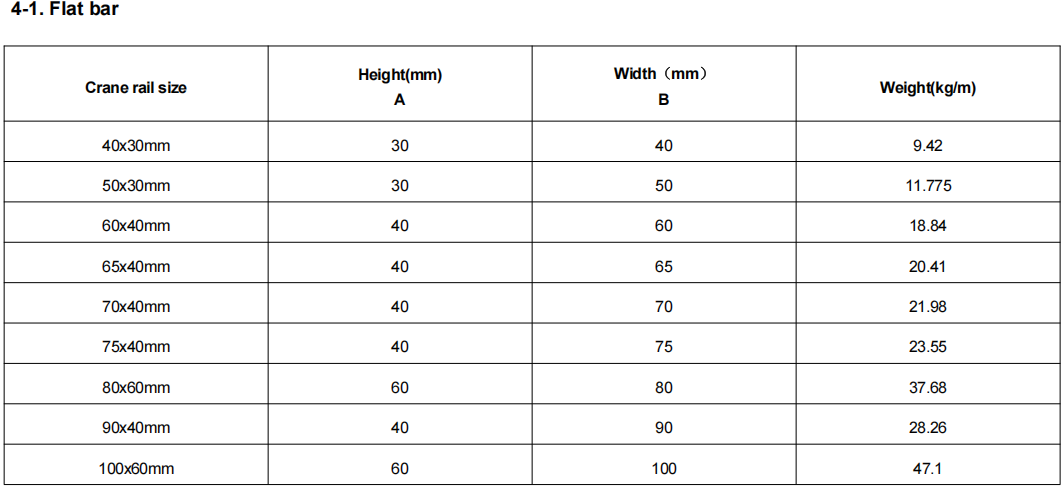

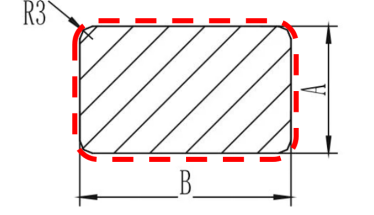

4-1. Flat bar

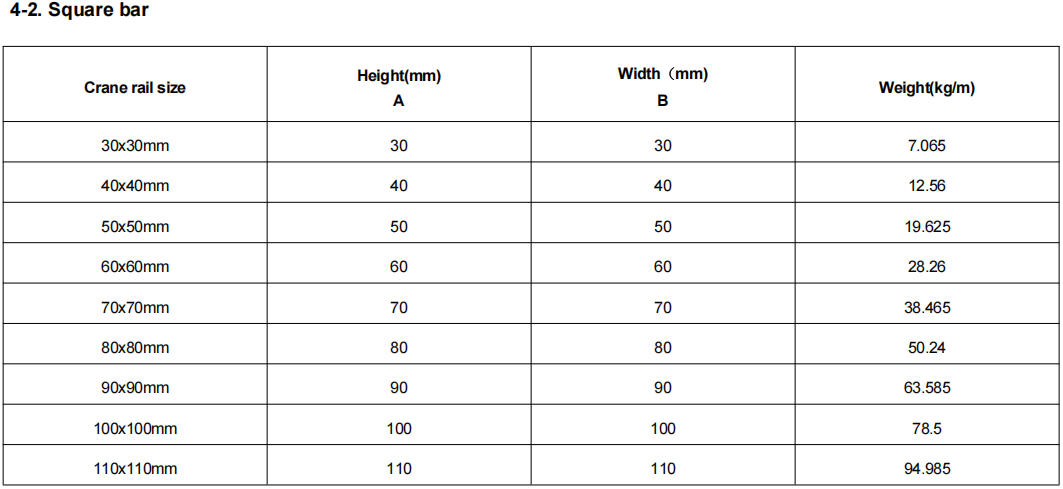

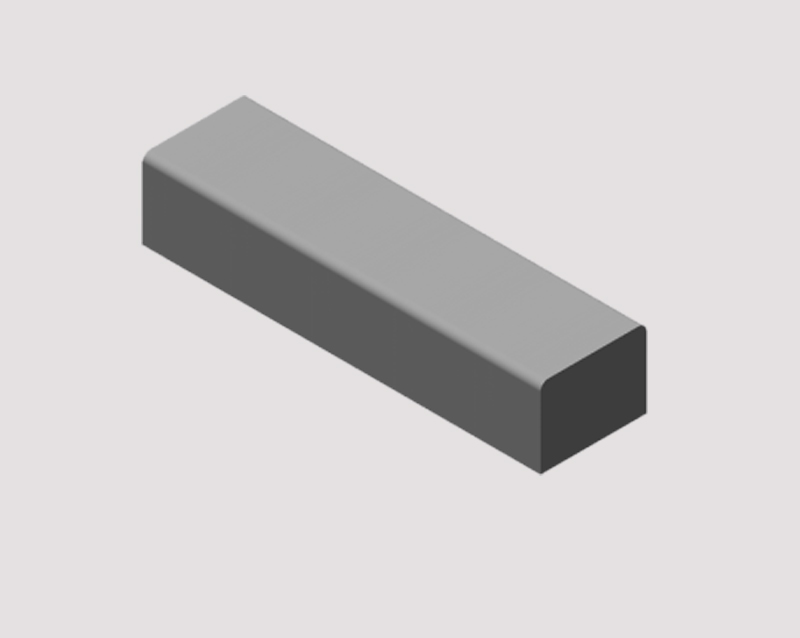

4-2. Square bar

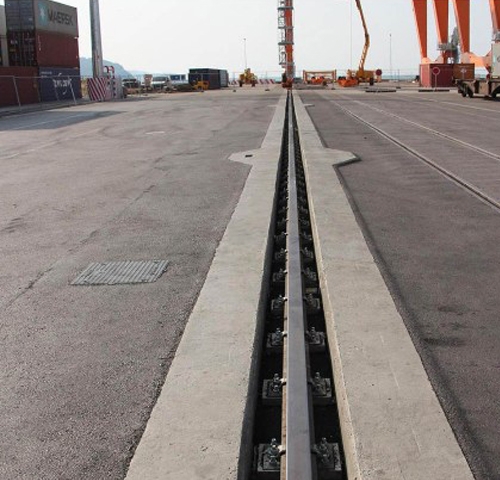

Application of Crane Rails

• A, P, and QU rails are ideal for heavy-duty, high-frequency applications that demand standardization, durability, and long-term cost efficiency. They are especially suited for settings requiring high safety standards and compatibility with standard components.




• P-type rails are now widely used across various applications, including rail cranes and trolleys. The rail features a convex top and a flat plate of specific width at the base, enhancing the contact area with the foundation. Its I-shaped cross-section provides excellent bending strength.




• Rectangular Rail: This type is suitable for custom or low-load applications, unique design requirements, short-term projects, or situations where initial cost savings are a priority.
