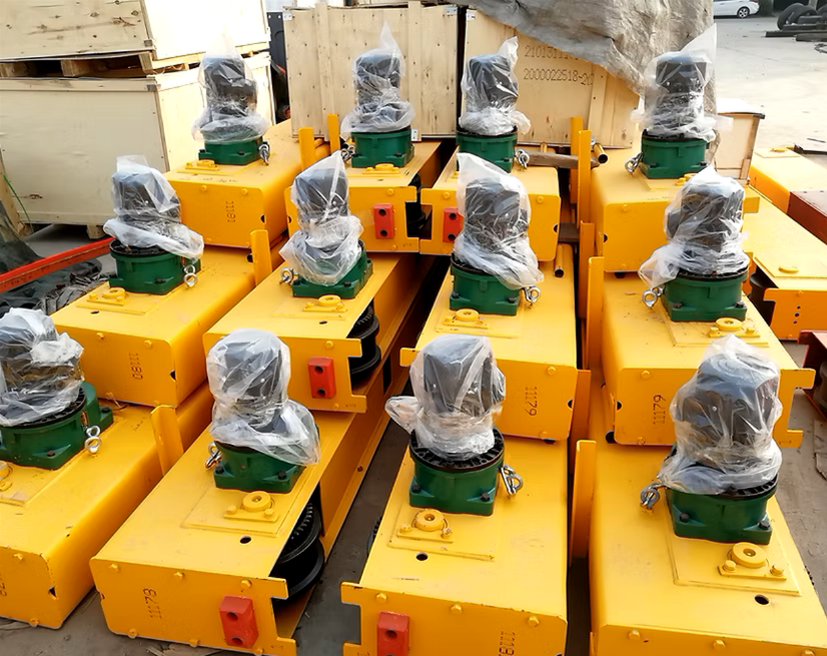

Bridge Crane End Carriage is a light and small lifting equipment operating mechanism accessory, used for the crane traveling, it is one of the main supporting parts of the bridge crane and gantry crane.
Henan Mine offers the advanced safety functions for the end carriage, like anti-sway, cross limit switch, photo sensor, storm locker, sound and revolving light, rail deviation correction device etc.
In additions, we can offer wheel block, bogie of overhead crane and gantry crane design for different application. Any requirements please don't hesitate to contact us.We respond fast.

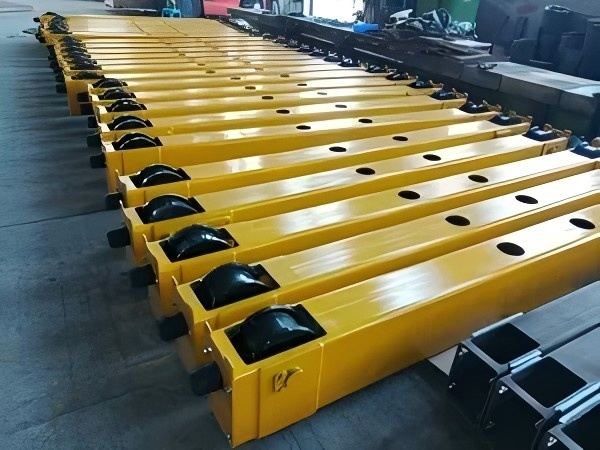

The end beams are compact, rail-guided travel units that can be directly connected to crane girders or other load-bearing structures. Each end beam consists of a torsion-resistant box-section frame, our wheel blocks, and our gear motors. They deliver exceptional travel performance and remain stable even under heavy loads.
Crane travel units engineered specifically for crane applications ensure reliable movement along the crane runway and building structure.
Travel mechanisms equipped with precisely manufactured wheels made from wear-resistant materials guarantee smooth and stable operation.
The entire system is designed for variable-frequency drives to achieve precise positioning and gentle load handling.
Low maintenance requirements: the travel units are rated for a service life that matches the full lifespan of the crane.
Features: |
|
The crane end beams feature a top-mounted design and are connected using traditional bolted joints.
Travel wheels with flanges are manufactured from GJS 700-2 material in accordance with the EN 1563 standard.
End carriages are designed for side-mounted crane connections.
The travel system is equipped with perfectly matched components, including the gear motor and wheel set.
Travel wheels are available in eight diameters, ranging from 90 mm to 400 mm.
Multiple tread options are available for the travel wheels.
The travel units offer torsional rigidity optimized specifically for crane applications:
Profiled section design with sizes up to 250
Welded box-section design with internal diaphragms, available from size 320
Compact end-carriage wheelbases allow extremely tight crane approach dimensions, ranging from 1,300 mm and 1,600 mm to 2,000 mm up to 5,500 mm.
Enhanced safety is ensured by the standard anti-derailment device.

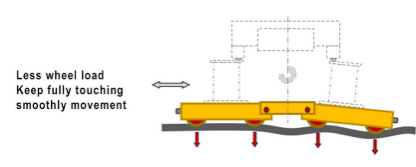

Twin travel units are available for synchronized operation.
Ideal for girder bridge cranes requiring higher load capacities and larger spans.
High-performance long-travel motors come standard with thermal protection and offer three gearbox size options.
Integrated plug-and-socket connections for easy installation.
Space-saving drive design featuring an offset gearbox.
A complete, field-tested range of wheel accessories is available, including buffers, horizontal guide rollers, rail sweepers, and anti-drop devices.
